Ion exchange chromatography (IEX) is a liquid chromatography technique that separates molecules by their charge using a charged stationary phase and an aqueous mobile phase. It is a workhorse for purifying proteins, nucleic acids, and inorganic ions in both research and industry .​

Brief history

Early observations of ion exchange date back to 19th‑century soil and clay studies, where investigators noticed that soils could remove ammonium or other ions from solution and release calcium or other cations in return. In the early 20th century, natural and synthetic zeolites were used to soften water and remove ions, leading to the first practical ion‑exchange columns .​

Modern ion‑exchange chromatography emerged in the 1940s with the development of synthetic organic ion‑exchange resins, which were crucial during the Manhattan Project for separating radioactive isotopes such as uranium fission products. From the 1970s onward, innovations such as suppressed ion chromatography and improved resins transformed IEX into a highly sensitive, automated, and widely adopted analytical and preparative method .​

How ion exchange works

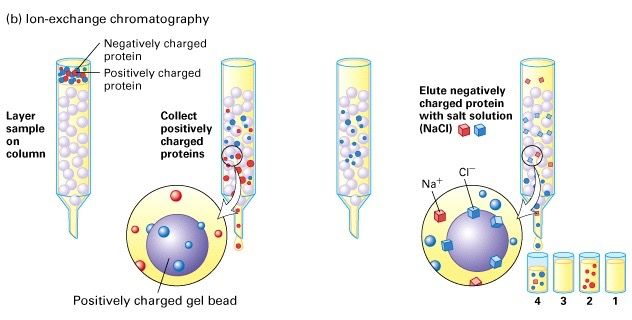

Ion exchange chromatography relies on reversible electrostatic interactions between charged groups on the stationary phase and oppositely charged analytes in the mobile phase. The stationary phase is typically a porous polymer or agarose bead functionalized with fixed ionic groups, while the mobile phase is an aqueous buffer that controls pH and ionic strength .​

There are two main modes: in cation exchange, the resin carries negatively charged groups and binds positively charged species (cations); in anion exchange, the resin is positively charged and binds anions. Initially, the charged groups on the resin are balanced by small counter‑ions (for example, sodium or chloride), which are then “exchanged” when higher‑affinity analyte ions bind to the resin .​​

Binding, elution, and selectivity

Binding strength in IEX depends on the net charge of the analyte, the distribution of charged residues, the pH relative to the analyte’s pKa or isoelectric point, and the ionic strength of the buffer. For biomolecules such as proteins, choosing a buffer pH slightly above or below the isoelectric point determines whether the protein will be positively or negatively charged and thus whether cation or anion exchange is appropriate .​​

Elution is usually achieved by gradually increasing salt concentration (a salt gradient) or changing pH so that competing ions or loss of net charge displace the bound analytes. Molecules with weaker interactions elute at lower salt or milder pH changes, whereas strongly bound species require higher ionic strength or more extreme pH shifts, giving IEX its resolving power .​

How it differs from other chromatography

Ion exchange chromatography is distinct from other major modes of chromatography because charge is the primary driving force for separation rather than hydrophobicity or size. In size‑exclusion chromatography, molecules are separated by hydrodynamic radius as they pass through pores, and in reversed‑phase chromatography, separation is based largely on hydrophobic interactions with an organic‑modified stationary phase .​

Compared with these methods, IEX generally offers high binding capacity, gentle aqueous conditions, and fine control of selectivity through buffer composition, making it especially suitable for labile biomolecules. It is also highly scalable, from small analytical columns to large industrial columns used in bioprocessing, where the same basic principles apply across volumes .​​

Key differences at a glance

Examples of use

IEX is a staple in protein purification workflows, often used as a capture or polishing step to separate a target protein from closely related contaminants based on subtle charge differences. It is widely applied in the production of therapeutic antibodies, vaccines, and other biopharmaceuticals, where regulatory expectations demand robust, scalable, and highly selective purification methods .​

Beyond proteins, IEX underpins ion chromatography for environmental and industrial analysis, allowing trace‑level quantification of anions and cations in drinking water, wastewater, and process streams. It is also used for nucleic acid purification, water softening and demineralization, and separation of metal ions in nuclear, mining, and materials research .​

Why ion exchange remains indispensable

Ion exchange chromatography remains popular because it combines versatility, resolution, and capacity under relatively gentle conditions. By tuning pH, salt type, and gradient shape, users can adapt a single column and resin to a wide range of targets and process scales, from exploratory lab experiments to regulated manufacturing .​

Ongoing developments in resin chemistry, column hardware, and instrument control continue to increase throughput and robustness, extending IEX into high‑throughput screening, continuous processing, and complex sample matrices. As analytical requirements tighten and biotherapeutics diversify, ion exchange chromatography is likely to remain a central tool for charge‑based separations across chemistry, biology, and environmental science .​
